• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27038

• • Brand: Deutsche Philips-Ges.

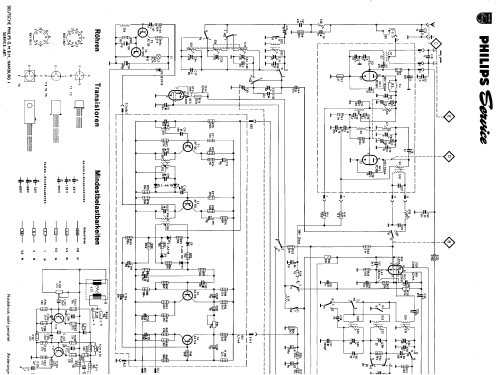

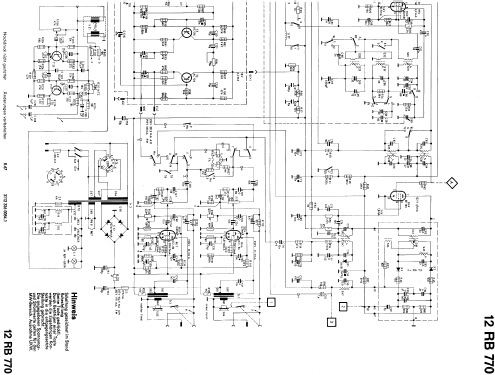

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PC900 PC900 ECH81 EF183 EM87 ECL86 ECL86

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Capella Reverbeo 12RB770 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 737 x 196 x 185 mm / 29 x 7.7 x 7.3 inch

• Notes
• Transistoren: AC126, AC128K, 2× AF126, 2× AC126, 2× AF126.
  Vollstereo, NF-Verstärker mit zwei Endstufen je 5,5 W.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 499.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Mentioned in
• Handbuch VDRG 1968/1969
