• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970/1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28144

• • Brand: Deutsche Philips-Ges.

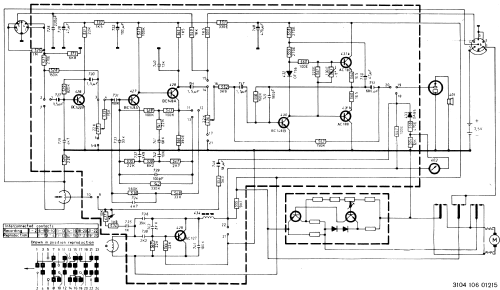

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BC149 BC148 BC148 BC148 AC127 AC187 AC188

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassetten-Recorder 2202 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 115 x 55 x 200 mm / 4.5 x 2.2 x 7.9 inch

• Notes
• Netzbetrieb mit zusätzlichem Netzgerät möglich.

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
