• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 86791

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• A47-11W

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Format 19 Automatic A19T610 /03 Ch= F4 - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 440 x 300 mm / 22 x 17.3 x 11.8 inch

• Notes

• Fernsehband VHF (I+III), UHF (IV/V).
  19 Zoll-Rechteckbildröhre.
  Ausführung: mittelbraun-seidenglanz.

  Parallelgerät zum Horny W48T016.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

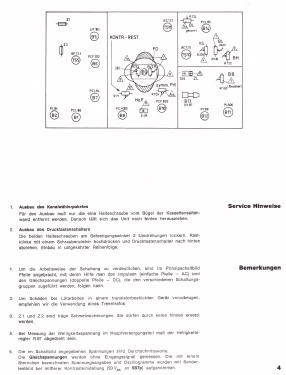

• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
