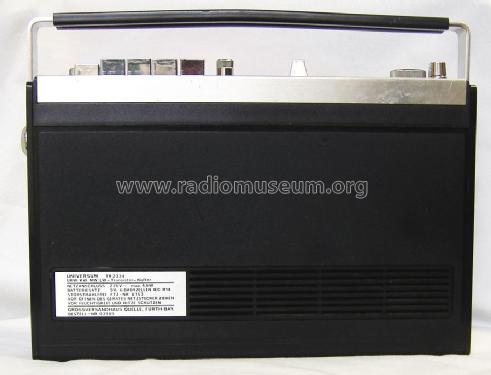

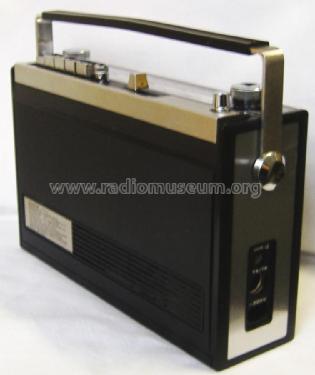

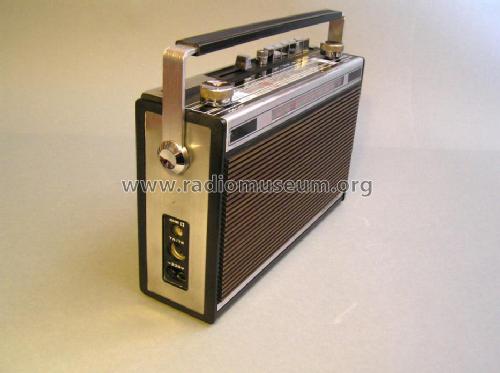

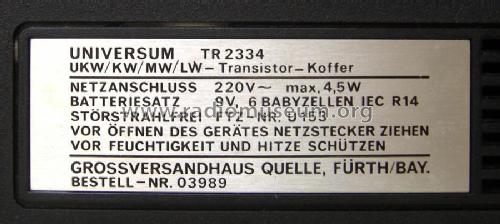

Transistor Koffer TR2334
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1974 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74417
Quelle Universum TR 2334

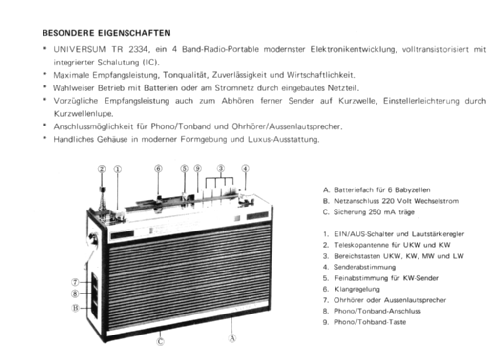

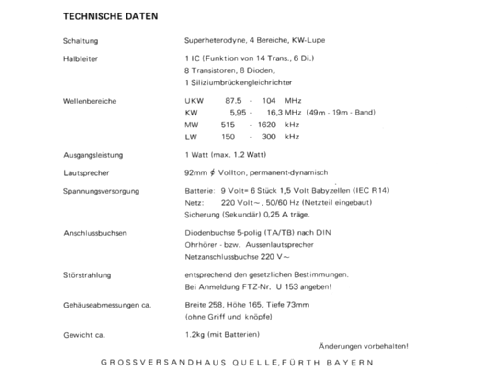

Anleitung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 6 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / C: 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor Koffer TR2334 - QUELLE GmbH Universum; Fürth
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 176 x 75 mm / 10.8 x 6.9 x 3 inch
- Notes
-
Handelsmarke Universum. 1 IC, KW-Lupe, Kopfhörerbuchse, DIN-Tonbandanschluss, hergestellt in Taiwan.
Im FM-ZF-Teil ist ein Piezofilter eingebaut.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
- Other Models
-
Here you find 1081 models, 905 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
Collections
The model Transistor Koffer is part of the collections of the following members.
