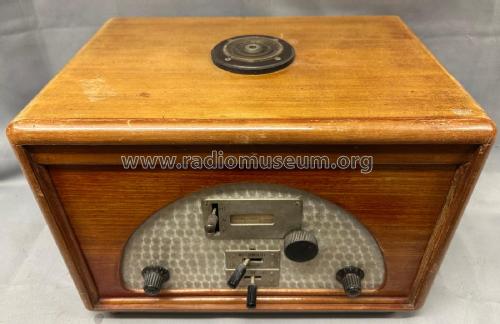

Synchrodyne 3334 window scale, 3 knobs
Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Country
- France
- Manufacturer / Brand
- Radio L.L. (Lucien Levy, LL Radio), S.A.E.D.R.A., Douglas; Paris
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72525
-
- alternative name: LL || Radio LL
Radio LL, model Synchrodyne 3334, inside.
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Synchrodyne 3334 [window scale, 3 knobs] - Radio L.L. Lucien Levy, LL
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 405 x 295 x 300 mm / 15.9 x 11.6 x 11.8 inch
- Notes
-
Antenne de cadre.
3 knobs, 3 switches.
Frame antenna adds 43 cm in height.
- External source of data
- Sammlung E. Erb
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
