8T241 Ch= KCS28
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1948
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 112460
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6AG5 6AG5 6J6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AG5 6AG5 6AG5 6AG5 6AL5 12AU7 6SN7GT 6SN7GT 6SN7GT 6K6GT 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 10BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8T241 Ch= KCS28 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 22.25 x 15.5 x 20.625 inch / 565 x 394 x 524 mm
- Notes
- The RCA 8T241 is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS28 and picture tube 10BP4. Uses Qty(1) 5" x 7" Elliptical PM speaker. Cabinet available in Walnut, Mahogany or Toasted Mahogany.
- Net weight (2.2 lb = 1 kg)
- 83 lb (83 lb 0 oz) / 37.682 kg
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Photofact 74-8)
- Literature/Schematics (2)

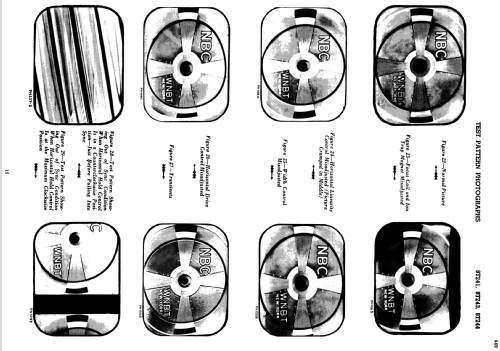

- RCA Victor Service Notes "Red Book" Series (Volume IV 1947-1948, Page 435)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
