610V1 Ch= RC-610C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53594
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Data taken from RCA datasheet

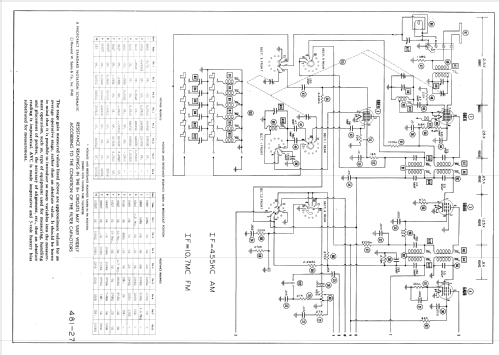

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 610V1 Ch= RC-610C - RCA RCA Victor Co. Inc.; New
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 35.1 x 36 x 18 inch / 892 x 914 x 457 mm
- Notes
- Record Changer used in this model is either of two types: RP-177 or 9600001-5.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 20 = covering 1950
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 31, Date 1/48, Folder 481-27)
