UHF-Empfänger ED80

• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1964

• Category
• Military Receiver

• Radiomuseum.org ID
• 82011

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

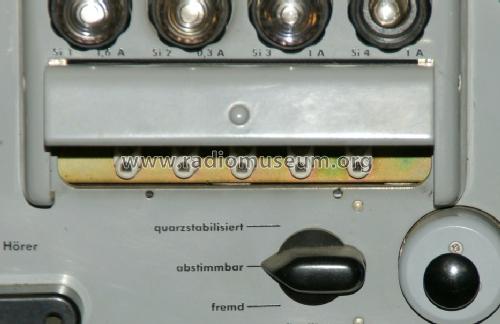

• Picture

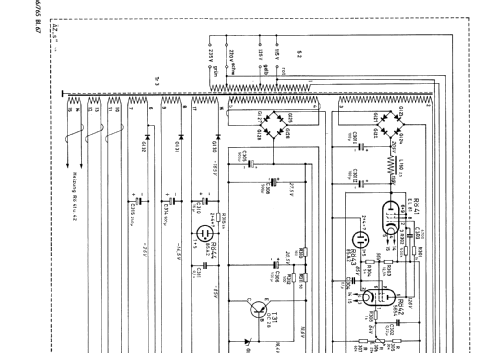

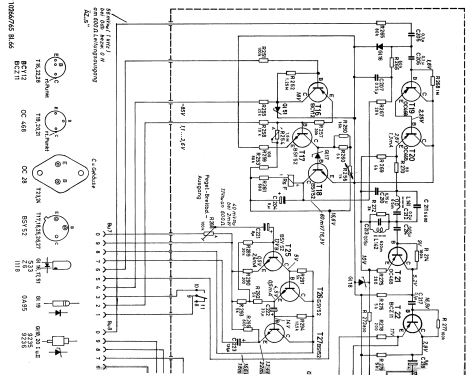

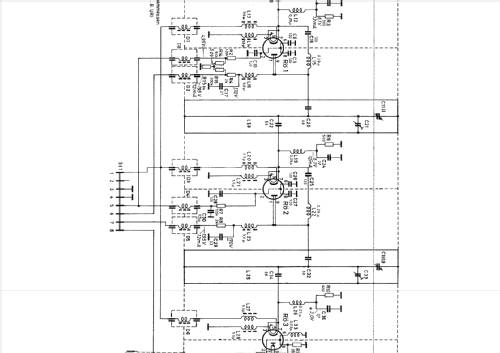

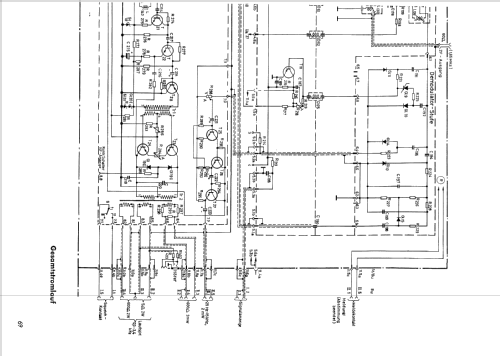

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• E86C E88CC E180F 6J6 EF93 EF95 EL81 85A2

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 115, 125, 220, 235 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: UHF-Empfänger ED80 - Rohde & Schwarz, PTE; München

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 540 x 160 x 412 mm / 21.3 x 6.3 x 16.2 inch

• Notes
• 225 - 400 MHz, VFO plus wählbarer, quarzstabilisierter Festfrequenz, AM. Zubehör Vielkanaloszillator ED10, Zehnkanaloszillator ED20, Feinabstimmgerät ED30. Flugfunk-Überwachungsempfänger, hauptsächliche Verwendung durch Bundeswehr. Röhren nur einfach aufgeführt.

• Net weight (2.2 lb = 1 kg)
• 31.5 kg / 69 lb 6.1 oz (69.383 lb)

• Price in first year of sale
• 9,032.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
