• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6AQ8 6AJ8 6BA6 6BA6 6E5_Japan 6AQ8 6AQ8 6AQ8 6BQ5 6BQ5

• Number of Transistors

• Semiconductors
• OA81 OA81 OA81

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

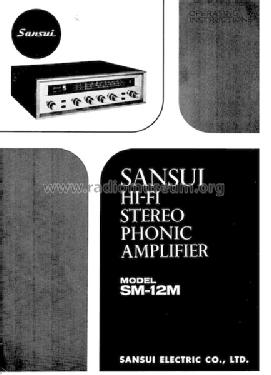

• Model: Hi-Fi Stereophonic Amplifier SM-12M - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 115 x 310 mm / 15.7 x 4.5 x 12.2 inch

• Notes

• MW/SW/FM Tuner with Stereo Amplifier.
  Provides MPX output for external FM stereo decoder.
  Mains transformer has center tap, but is hard-wired for 220V only.

  Bands:

  • FM = 80 - 108 MHz
  • SW = 3.5 - 10 MHz
  • BC = 535 - 1600 kHz

  See also Sansui SM-12
