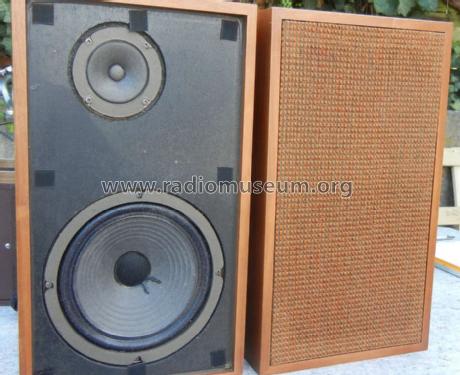

Controlled Impedance Wide-Range Loudspeaker System S-17
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1971 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 255356
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Controlled Impedance Wide-Range Loudspeaker System S-17 - Scott; H.H.; Maynard,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 267 x 457 x 216 mm / 10.5 x 18 x 8.5 inch
- Notes
-
Type: S-17 type: sealed housing 2 woofer / midrange: 1 x (high compliance woofer) Tweeter: 1 x (Soft Cone tweeter) diaphragm diameter dd / MT: 200 mm membrane diameter HT: 75 mm Impedance 8 Ohm "impedance-controlled" Crossover: 2-way frequency response: 40 - 20000 Hz (DIN 45500) load capacity: 35 watts (DIN 45573) Minimum amplifier Power 6 Watt (according to DIN 45500) Middle / Upper range: yes Volume (net) 16.5 liters connectors optional terminal block - Cynch male Species: walnut natural fabric: dark brown textured fabric Impedance 6-8 Ohms.
Made in USA.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Price in first year of sale
- 330.00 DM
- Mentioned in
- Funk-Technik (FT) (17/1971, S. 618 / Werbeanzeige)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
