Silvertone Order= 57FM 4688 Ch= 100.159
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56445
-
- Brand: Silvertone

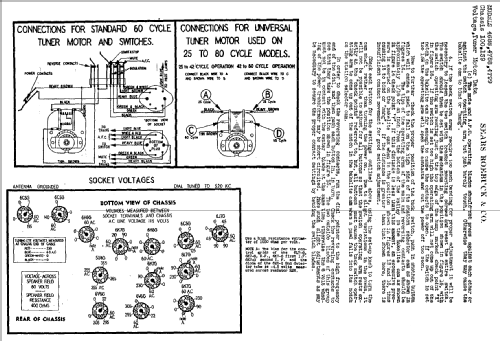

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-135 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm
- Power out
- 14 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone Order= 57FM 4688 Ch= 100.159 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 26 x 42 x 13 inch / 660 x 1067 x 330 mm
- Notes
- "Moto Matic" tuner. Speaker 10 or 12 inch.
- Price in first year of sale
- 94.75 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Pre-War Consoles (Riders 9-61 to 74)
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 125)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (# 175, Fall & Winter 1937/38, page 659.)
