• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1980 ??

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71304

Click on the schematic thumbnail to request the schematic as a free document.

• Material
• Metal case

• from Radiomuseum.org

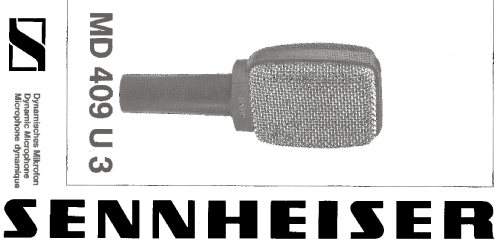

• Model: MD409 - Sennheiser Electronic Labor W;

• Dimensions (WHD)
• 55 x 34 x 134 mm / 2.2 x 1.3 x 5.3 inch

• Notes
• Dynamisches Mikrofon
  Richtcharakteristik Niere
  Übertragungsbereich 50 bis 15000 Hz
  Empfindlichkeit 1,18 mV/Pa
  Impedanz 200 Ohm
  überwiegend für Aufnahmen mit lautstarken Instrumenten geeignet
  Anschluß 3pol. XLR-Stecker

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
