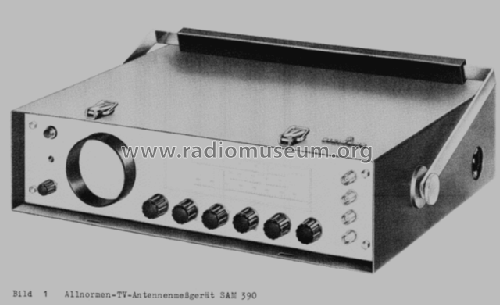

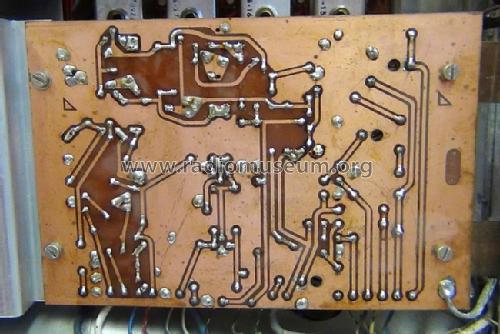

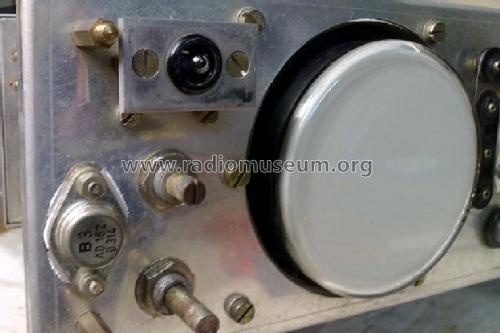

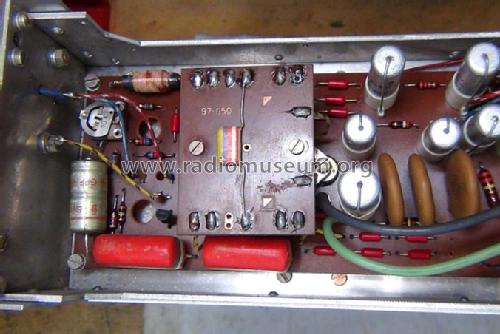

Allnormen TV-Antennenmeßgerät SAM390

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1966–1970 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 223794

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D7-17GJ

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Allnormen TV-Antennenmeßgerät SAM390 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 450 x 120 x 420 mm / 17.7 x 4.7 x 16.5 inch

• Notes

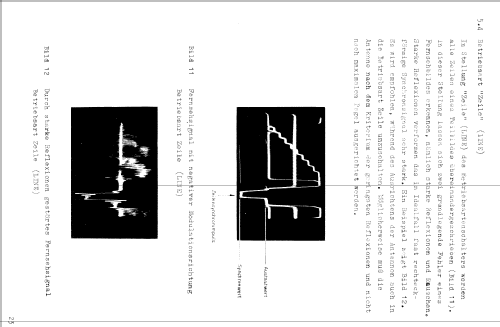

• Transistorbestückter selektiver Meßempfänger zum Messen von Fernseh- und Begleittonsignalen.

  Frequenzbereiche:
  I= 40-100 MHz,
  II= 140-230 MHz,
  III= 470-870 MHz.
  Alle Fernsehstandards

  Batteriebestückung:
  Entweder: 10 Stück NC-Akkus DEAC RS 3,5 (im Gerät aufladbar)
  Oder: 12 Stück Monozellen IEC R20 (D).

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funk-Technik (FT) (13/1970, S. 490 / Kurzbeschreibung)

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
