• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200481

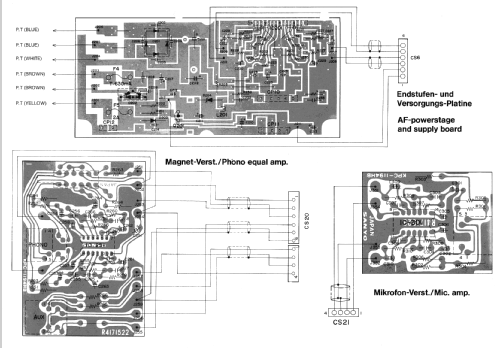

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Klangmeister Electronic RS407 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 185 x 460 mm / 23.6 x 7.3 x 18.1 inch

• Notes
• Klangmeister electronic RS407, sechs manuelle UKW-Speichertasten davon eine mit AFC, Stereo, U-Frequenz.- und Abstimmanzeige, analoge Frequenzanzeige, Dolby NR-System, Zählwerk, Analog-Pegelanzeige L/R, Kopfhörer-DIN-Buchse, Bass/Höhen.-und Balanceregler, DIN-Buchse für Ext. Eingänge, zwei Lautsprecheranschlüsse, Plattenspieler mit 45 und 33 UpM, Pitch.- und Liftautomatic.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
