• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 86311

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

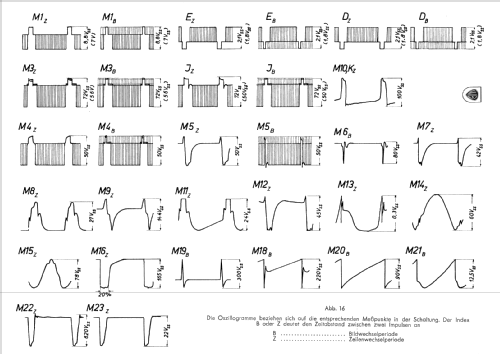

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 PCL84 EF80 PCL82 EAA91 PCF80 PCF80 PCL82 PL36 PY81 DY87 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kurier 59 FS5843 - Siemens-Austria WSW; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 470 x 407 mm / 19.3 x 18.5 x 16 inch

• Notes
• Empfangsbereich VHF, Band I + III.

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Price in first year of sale
• 6,480.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
