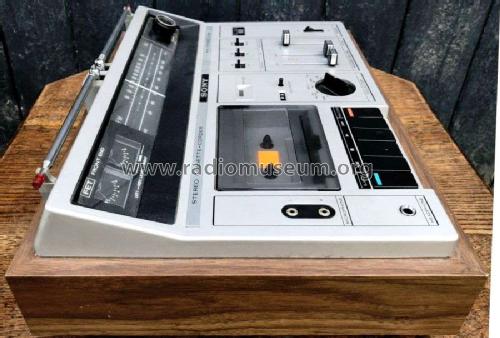

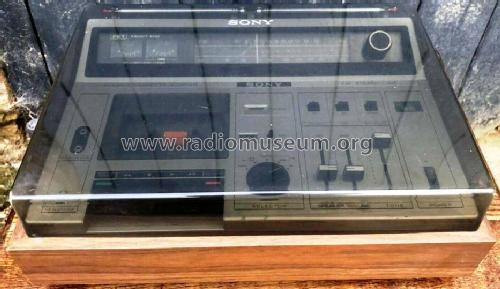

Stereo Cassette-Corder / FM Stereo / AM CF-620

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157311

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 12 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Cassette-Corder / FM Stereo / AM CF-620 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 316 x 298 mm / 16.5 x 12.4 x 11.7 inch
  • Notes
  • A stereo radio cassette recorder/player system with 2 x 6 watts continuous output power into 8 ohms. Features: slider volume and tone controls, tape selector switch, tape counter, tape pilot, 2  telescopic antennas, left and right recording level meters. 2 phono input for magnetic cartridges, 2 microphone inputs and two Aux Line inputs, two Line outputs, terminals for one pair of loudspeakers and a jack for headphones. Removable speakers that also serve as a lid.

    Stereoanlage mit 2 x 6 Watt Dauertonleistung. Merkmale: Schieberegler, Bandwählschalter, Bandzählwerk, Bandlaufanzeige, 2 Teleskopantennen, 2 getrennte Anzeigeinstrumente. Phonoeingang für Magnettonabnehmer und Diodeneingang. Abnehmbare Lautsprecher, die gleichzeitig als Deckel dienen.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Literature/Schematics (1)
  • Selezione Radio-TV Dezember 1972
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service manual CF-620 US model)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
