- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1971/1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17196
- Number of Transistors
- 15
- Semiconductors
- BF314 BF353 BF195 BF194 BF194 BF194 BF194 BF194 BF194 BF194 BF194 BF194 BC173 BC108 BC309
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 18 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

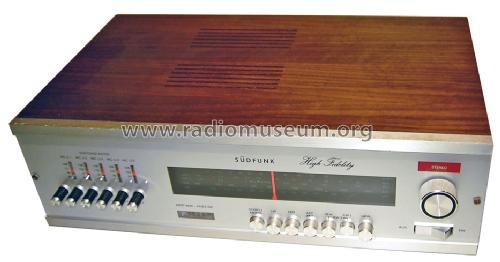

- Model: Tuner T715 - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 380 x 110 x 230 mm / 15 x 4.3 x 9.1 inch
- Notes
-
Siehe auch Quelle Universum Tuner T715.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Historische Radios Band IV (82B)
- Literature/Schematics (1)
- -- Original-techn. papers.
