Tonbandgerät 74B (741B)

• Country
• Norway

• Manufacturer / Brand
• Tandberg Radio; Oslo

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 124366

• Picture

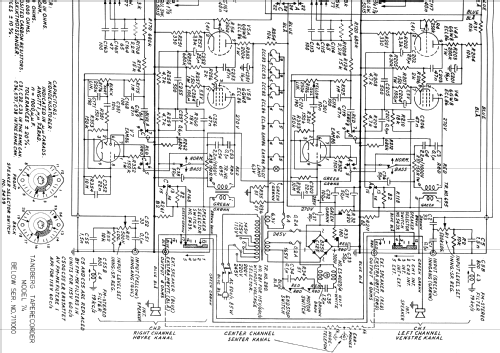

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC82 ECC83 ECC83 ECC83 ECC83 EAM86 EAM86 EL84 EL84

• Number of Transistors
• 2

• Semiconductors
• AC107 AC107

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Tonbandgerät 74B - Tandberg Radio; Oslo

• Shape
• Tablemodel, low profile (big size).

• Notes

• Trickeinspielung mit Hörkontrolle. 4-Spur-Stereo.

  This model is designated as 74B (right hand corner on top) as well as 741B (on the type label), same practice as for model 74 / 741.

• Price in first year of sale
• 1,295.00 DM

• Mentioned in
• Funkschau (15.1964)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
