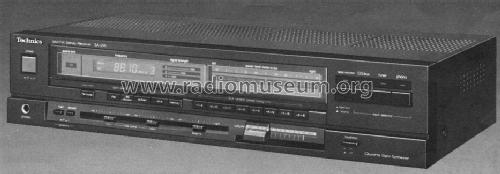

AM/FM Stereo Receiver SA-290
Technics (brand)
- Country
- Japan
- Manufacturer / Brand
- Technics (brand)
- Year
- 1986/1987
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154345
Q: Technics, Service-Unterlagen
Q: Technics, Service-Unterlagen
Bedienungsanleitung

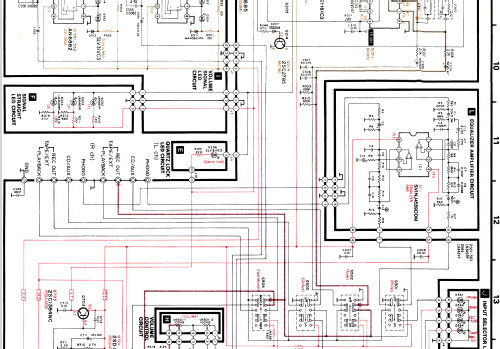

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Stereo Receiver SA-290 - Technics brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 97 x 243 mm / 16.9 x 3.8 x 9.6 inch
- Notes
- AM/FM Stereo Receiver with 50 watts RMS per channel into 8 ohms.
- Net weight (2.2 lb = 1 kg)
- 5.312 kg / 11 lb 11.2 oz (11.7 lb)
- Price in first year of sale
- 225.00 $
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
