• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1974

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 148517

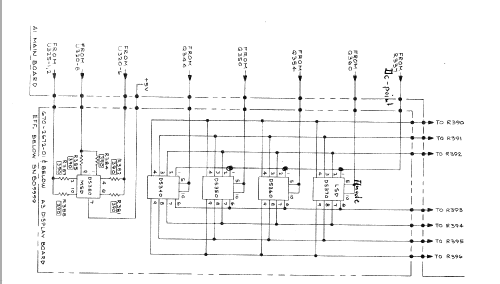

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 11,5 & 33,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Digital Multimeter Plug-In DM501 - Tektronix; Portland, OR

• Dimensions (WHD)
• 152 x 221 x 389 mm / 6 x 8.7 x 15.3 inch

• Notes
• 4 1/2 Digits
  DC full scale 2V...1000V
  AC full scale 2V...500V
  AC/DC current 2mA...2A
  Resistance full scale 2kOhm...20MOhm
  Input resistance: 10MOhm
  Das Gerät ist ein Einschub für das Tektronix Power Module der 500er Reihe. Standard-Ausstattung mit Temperatur-Messeinrichtung und Probe P6058. Mit Option 02 wurde das Gerät ohne diese Möglichkeit angeboten.

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 475.00 $

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Bernd Hakenjos. See "Data change" for further contributors.
