Cariño (Carino) U1465
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62536
Carino U-1465 Kopie von Ebay

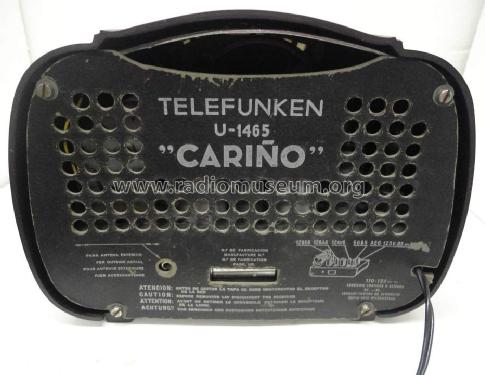

Carino U-1465 Seitenansicht Kopie von Ebay

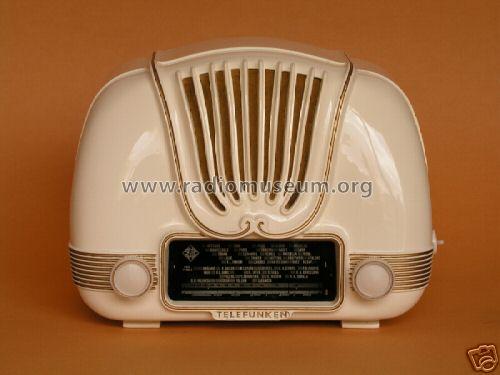

frontal

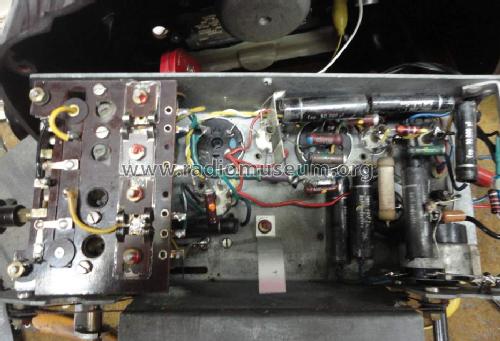

Chasis fuera del mueble.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Cariño U1465 - Telefunken Radiotécnica
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 240 x 180 x 140 mm / 9.4 x 7.1 x 5.5 inch
- Notes
- En #638 "Radios españolas", pagina 40, hay un dibujo con un modelo Telefunken 1465 que tiene otra cara - no lo se que existe con el misma numero pero sin U. The book of the Sr.Julia Enrich,has some errors,as this case,the photo as U1465 corresponds to model MARIMBA U1515 and vice versa. Piloto de 12V 0.1A
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Price in first year of sale
- 1,590.00 Ptas
- External source of data
- Ernst Erb
- Source of data
- Radio Historia y Técnica, J.J.E.

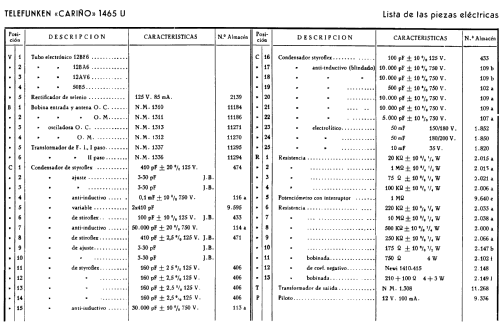

- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (4)
- Anuncio La Vanguardia Española Octubre 1954 modelos 1955
- Other Models
-
Here you find 374 models, 296 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Telefunken Radiotécnica Ibérica; Getafe
Collections
The model Cariño (Carino) is part of the collections of the following members.
Forum contributions about this model: Telefunken: Cariño U1465
Threads: 1 | Posts: 4
El texto del Sr. Julia Enrich contiene multitud de inexactitudes. Este modelo Cariño NO es de 1948 sino de 1954. Existen dos modelos: uno en baquelita marrón y otro pintado en color crema. Los botones de mando frontales originales son los que corresponden a la foto que he subido.
Salvador Saura-Lopez, 21.Nov.09
