Fernschreiber-Tastgerät Tg Fs 127/3

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1961 ??

• Category
• Morse-Equipment & TTY, RTTY, TDD etc.

• Radiomuseum.org ID
• 76162

• Picture

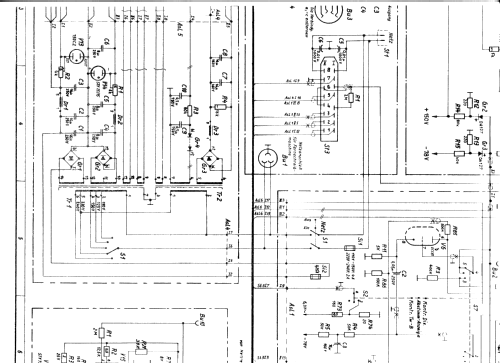

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• EF80 ECC81 ECC82 EF80 EF80 EF80 EF80 ECC81 ECC81 ECC81 ECC81 ECC81 ECC82 ECC82 ECC82 DG7-12C STV75/15 STV150/30 STV150/30

• Main principle
• RF Converter/Adapter (not voltage converter); ZF/IF 525 kHz

• Details
• Converter

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fernschreiber-Tastgerät Tg Fs 127/3 - Telefunken Deutschland TFK,

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 520 x 168 x 350 mm / 20.5 x 6.6 x 13.8 inch

• Notes

• IF-RadioTeleTYpe converter/ZF-Fernschreibkonverter for/für Telefunken E104, E108, E127Kw/4(5), E305 u.a. (ZF/IF 525 kHz / 0,1 V). 60 VA, 40-60 Hz.

  Siehe auch Empfangsanlage ESt 127a Kw

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
