• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1955/1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76573

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material

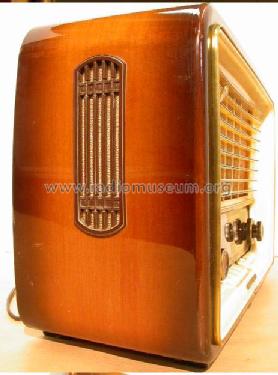

• Wooden case

• from Radiomuseum.org
• Model: Gavotte 6 Export - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 475 x 335 x 195 mm / 18.7 x 13.2 x 7.7 inch

• Notes

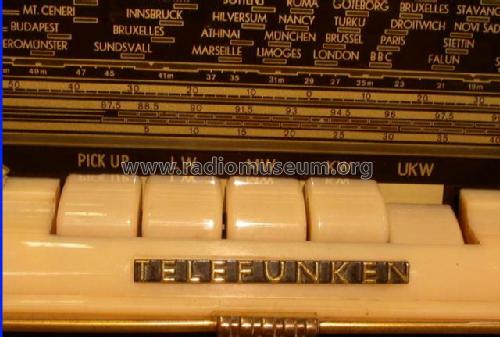

• Exportversion: internat. Tastenbeschriftung, internat. Skalenscheibe.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
