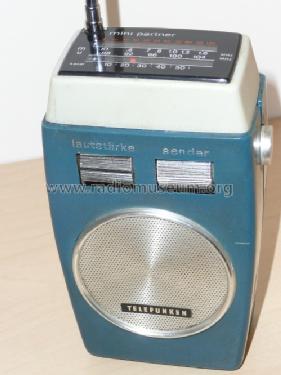

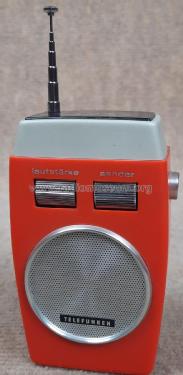

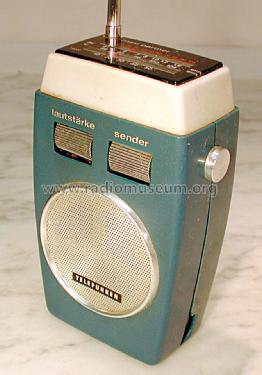

Mini Partner 101

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3932

• Picture

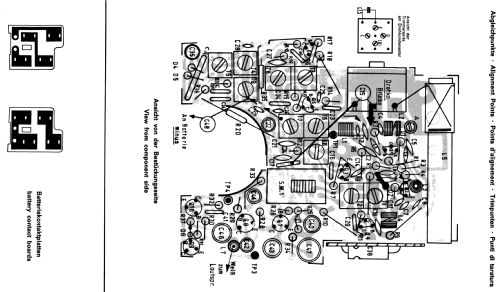

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

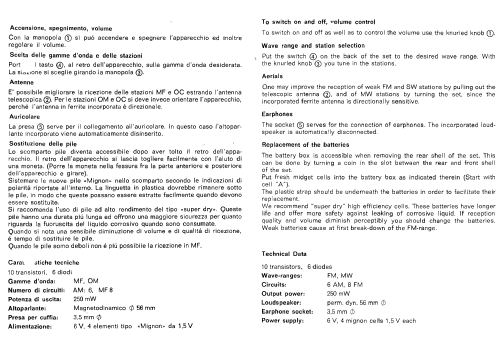

• Number of Transistors
• 10

• Semiconductors
• 2SC1026 2SC1032 2SC1032 2SC967 2SC967 2SC1023 2SC1023 2SC1023 2SB33 2SB33 1S446 1S990

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     5 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mini Partner 101 - Telefunken Deutschland TFK,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 120 x 45 mm / 2.8 x 4.7 x 1.8 inch

• Notes
• Ohrhöreranschluss.
  Dioden teils mehrfach vorhanden

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 1, Ernst Erb
