- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1982
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 125887
ebay 140283777234 Verkäufer hoetzy
Funkschau 3.1982
Funkschau 3.1982

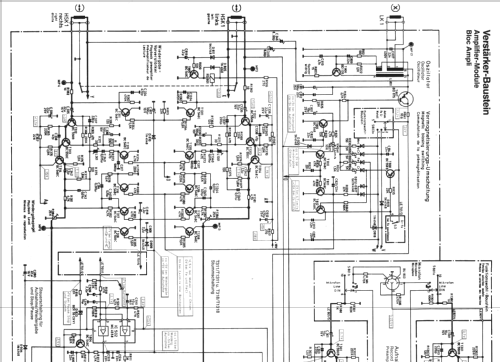

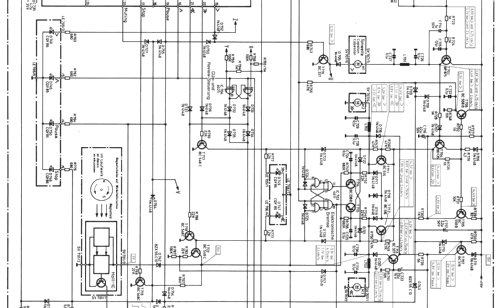

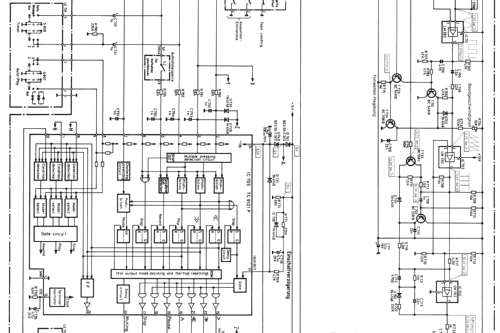

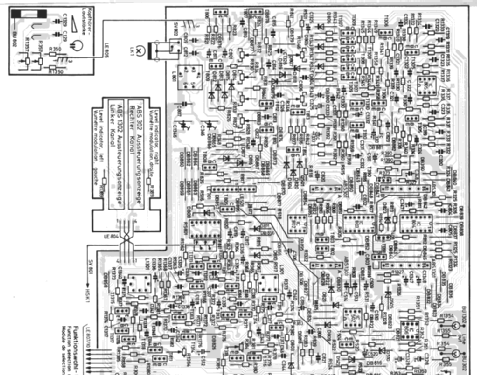

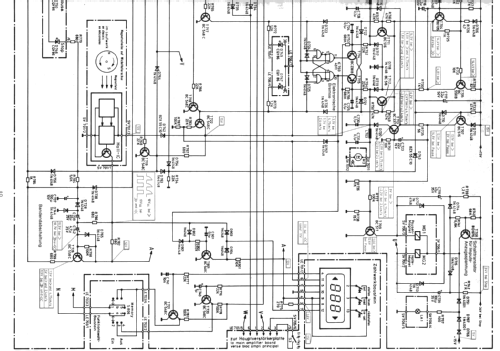

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 76
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220/110 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

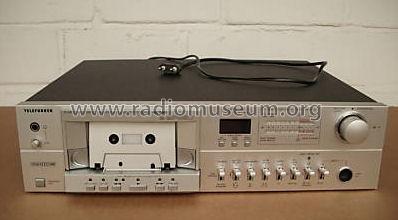

- Model: RC 300 - Telefunken Deutschland TFK,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 435 x 111 x 375 mm / 17.1 x 4.4 x 14.8 inch
- Notes

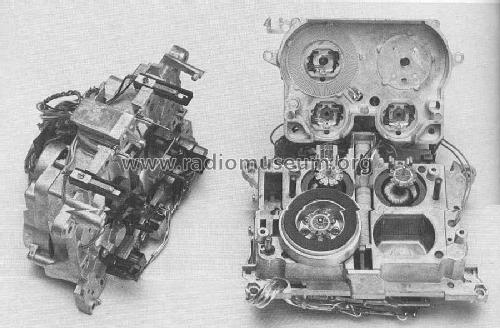

- 3 Motors direct Multidrive Cassette Deck, 2 speed, Hi-COM NR, Chinch und DIN Buchsen, digitales Bandzählwerk mit Vakuum-Fluoreszenzanzeige. 28 IC´s, 84 Dioden, 27 LED´s.
- Net weight (2.2 lb = 1 kg)
- 8.1 kg / 17 lb 13.5 oz (17.841 lb)
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Funkschau (6/1982, S. 59 - 62 / Ausführliche Beschreibung)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
