FM HiFi Stereo/FM-AM Receiver TR350 HiFi Ch= 1000

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1979–1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156020

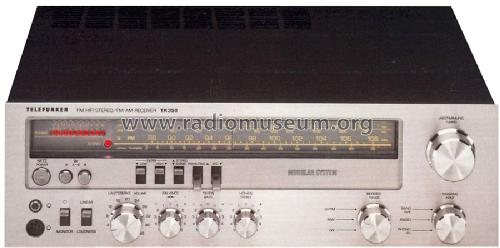

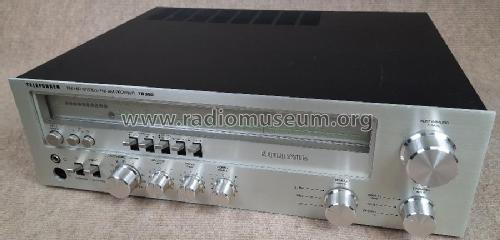

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (140 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: FM HiFi Stereo/FM-AM Receiver TR350 HiFi Ch= 1000 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 460 x 145 x 350 mm / 18.1 x 5.7 x 13.8 inch

• Notes
• Telefunken Receiver TR 350 (TR 350 hifi);
  Besonderheit: Alle Anschlüsse sind in DIN UND internationaler Bauweise ausgeführt.
  Tuner: UKW bis 108 MHz, LED Feldstärke Indikator, LED Stereo Ind., AFC, Mono/Stereo, FM Muting,
  Verstärker:
  15 - 43.000 Hz, 2 x 50/70 Watt/4 Ohm, Bass-, Höhen & Balance Regler, Low & High Filter, Linear/Loudness, Speaker A/B,
  Gehäuseausführungen in metallic-braun oder mattschwarz mit champagner-metallic Front.

• Mentioned in
• -- Original prospect or advert (Telefunken High Fidelity Programm 79/80 (D))

• Literature/Schematics (1)
• FFH Braune Liste 80/81

• Author
• Model page created by a member from A. See "Data change" for further contributors.
