• Year
  • 1980/1981
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 142284

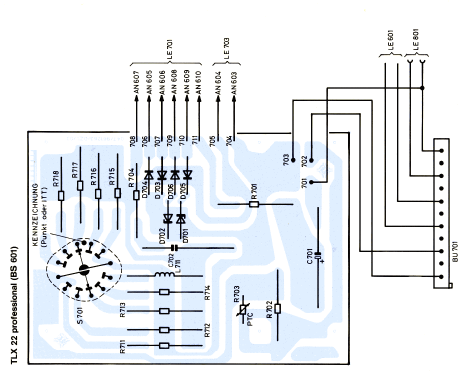

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TLX-22 Professional - Telefunken Deutschland TFK,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 290 x 450 x 230 mm / 11.4 x 17.7 x 9.1 inch
  • Notes
  • 4 Ohm, Nennbelastbarkeit 90 Watt, Musikleistung 150 Watt. Pegeleinstellung im Hochton-Bereich, Leuchtdiode für Übersteuerungs-Anzeige.
  • Mentioned in

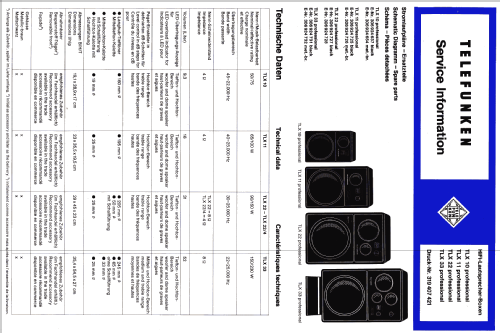

  • -- Original-techn. papers. (Original Telefunken Servicew Unterlagen)
  • Literature/Schematics (1)

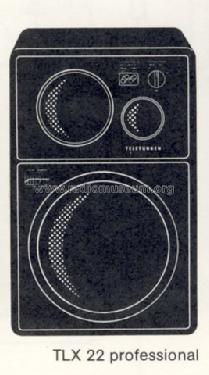

  • -- Original prospect or advert (Telefunken Katalog 1980/81)
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
