• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1951

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95266

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• ECC81 EF80 EB91 PL83 EQ80 PL82 ECL80 PL81 ECL80 PY80 EY51 MW36-22

• Main principle
• Superheterodyne (common); ZF/IF 19200 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

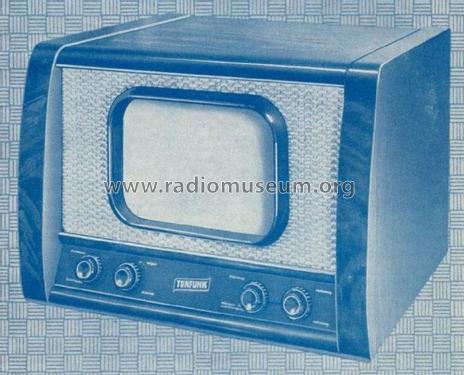

• Model: Violetta F1 - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 420 x 500 mm / 23.6 x 16.5 x 19.7 inch

• Notes
• 36-cm-TV; 1 Kanal (188-195 MHz) nach Philips-Schaltungskonzept, Röhren mehrfach verwendet, Paralleltonverfahren.

• Mentioned in
• Radio Magazin 10/1953

• Literature/Schematics (1)
• Radio-Mentor (10/1951, S.484)
