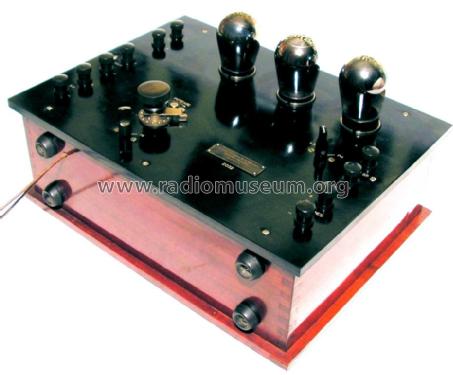

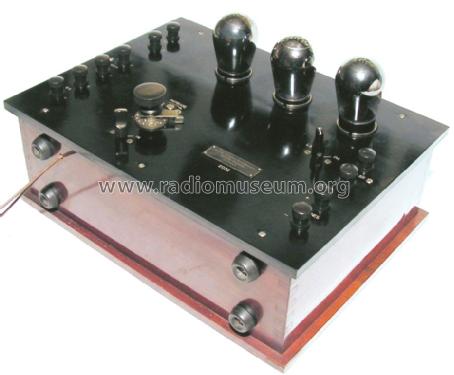

Tungsram-Western 3 csöves Amplifier
Tungsram; Budapest (see also British T.)
- Country
- Hungary
- Manufacturer / Brand
- Tungsram; Budapest (see also British T.)
- Year
- 1926
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 140678
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / 120 & 2 × 4 & 6 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tungsram-Western 3 csöves [Amplifier] - Tungsram; Budapest see also
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 256 x 125 mm / 13.8 x 10.1 x 4.9 inch
- Notes
-
Jack: Speaker and Headphones.
push-pull system
- Net weight (2.2 lb = 1 kg)
- 4.3 kg / 9 lb 7.5 oz (9.471 lb)
- Price in first year of sale
- 205.00 Pengö
- Source of data
- - - Manufacturers Literature
- Mentioned in

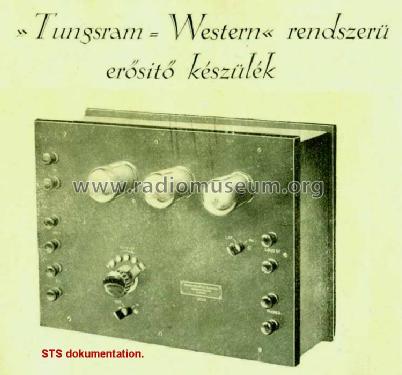

- -- Original prospect or advert (Belgráder 1926/27. Nagy katalógusa - Big catalog)
- Literature/Schematics (1)
- Original Egyesült Izzólámpa és Villamossági Rt. (Tungsram) prospekt in 1928.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
- Other Models
-
Here you find 41 models, 40 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Tungsram; Budapest (see also British T.)
