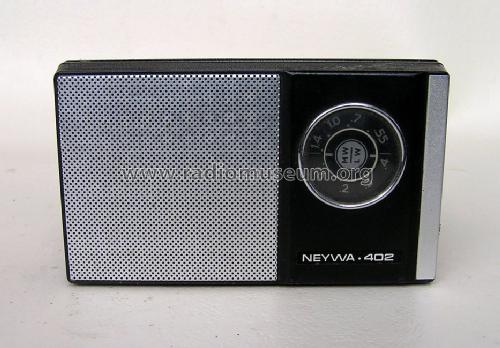

Nejva {Нейва} [Neywa] 402

• Country
• Soviet Union

• Manufacturer / Brand
• Kamensk-Uralsk Radio Works

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116285

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

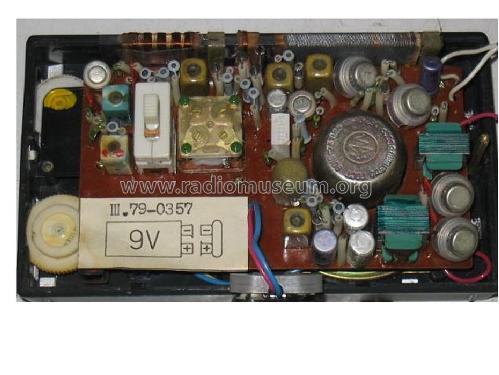

• Number of Transistors
• 6

• Semiconductors
• ГТ309 ГТ309 МП41 МП41 МП41 МП41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Nejva {Нейва} [Neywa] 402 - Kamensk-Uralsk Radio Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 130 x 80 x 40 mm / 5.1 x 3.1 x 1.6 inch

• Notes

• Transistoren: 2× GT309G, 2× MP41A, 2× MP41.
  Langwelle von 150 bis 400 kHz; Anschluss für Außenantenne und Kopfhörer, Exportmodell.

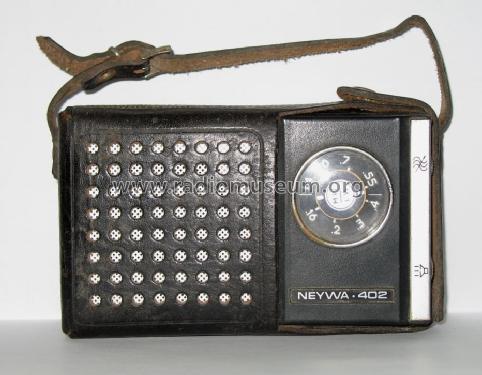

  Ledertasche

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
