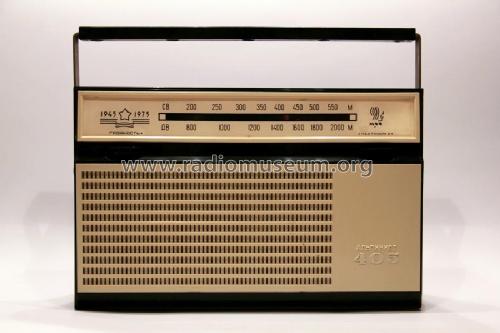

Alpinist - Алпинист 405

• Country
• Soviet Union

• Manufacturer / Brand
• Voronezh POLIUS Radio Works

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94203

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• КТ315 КТ315 КТ315 МП40 МП40 ГТ402 ГТ402

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5; 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Alpinist - Алпинист 405 - Voronezh POLIUS Radio Works

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 259 x 160 x 75 mm / 10.2 x 6.3 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 33.00 Rbl
