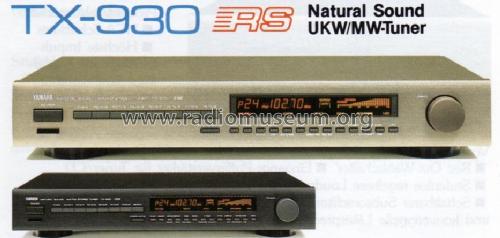

Natural Sound AM/FM Stereo Tuner TX-930

Yamaha Co.; Hamamatsu

Data
Forum
Pictures
Collections

  • Year
  • 1990/1991
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 202542
    • alternative name: Nippon Gakki

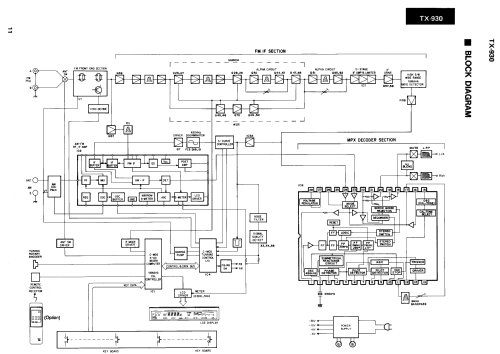

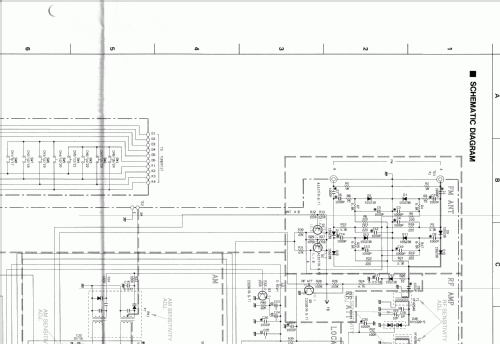

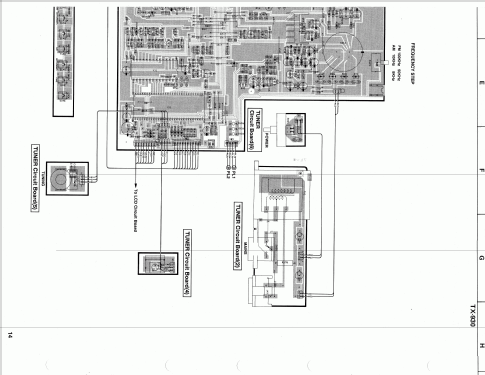

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Natural Sound AM/FM Stereo Tuner TX-930 - Yamaha Co.; Hamamatsu
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 76 x 320 mm / 17.1 x 3 x 12.6 inch
  • Notes
  • HiFi Tuner für MW und UKW. Computer Servo Lock Abstimmung, digitale Feinabstimmung, ZF-Verstärker mit Absolut Linear Phase, Speicher für 6 Abstimmarten, 2-stufiger ZF-Wahlschalter, 24 Stationsspeicher zum Direktabruf, High Blend-Wahlschalter, Antennen-Wahlschalter, Anzeige der Senderfrequenz oder Kennung, schaltbare HF-Dämpfung, Rotary Encoder Abstimmung, neuartige MW Rahmenantenne.
  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Price in first year of sale
  • 825.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
