• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114405

• • alternative name: Chicago Radio Lab

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BA6 12AT6 6J5 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands

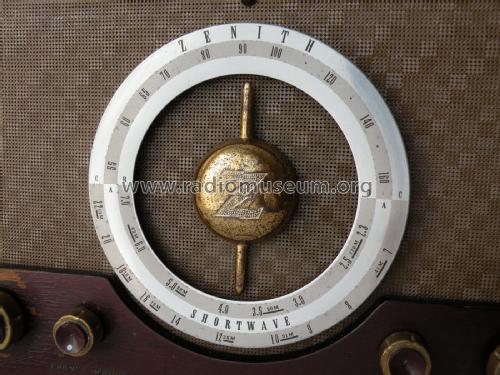

• Broadcast plus 2 Short Wave bands.

• Details

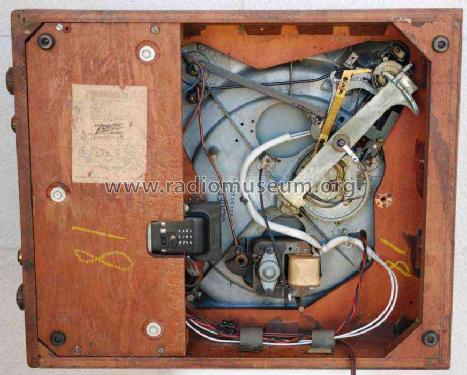

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 125 225 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: G672BT Ch= 6G61BT - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 240 x 475 mm / 15.2 x 9.4 x 18.7 inch

• Notes
• Export Model

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
