BAY46

Information - Help
ID = 46293

Country:
Germany
Brand: Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Tube type:  Solid-State-Diode   Universal
Identical to BAY46
Similar Tubes
Normally replaceable-slightly different:
  BA145 ; BAY21
Base Wires
Description Material/Aufbau: Silizium Planar, Allglas;
Form/Case: DO-7;
Daten/electr.data: I F: 100 mA; U F: 1.2 V; Isp: 0.1 µA; U sp: 300 V; N: 250 mW; I max: 150 mA; U max: 300 V; t max j: 150 °C; 4 pF.
-
Dimensions (WHD)
incl. pins / tip		 3 x 3 x 8 mm / 0.12 x 0.12 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - -
- - -   KTT 1969/70
- - -
- - -

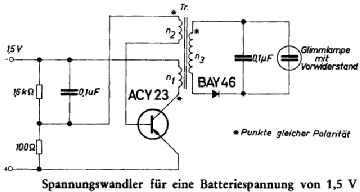

BAY46: Siemens Halbleiter Schaltbeispiele April 1962
Günter Kudicke
do7_97.gif BAY46: DVT 1971 ECA
Günther Stabe † 19.8.20
Usage in Models 3= 1979
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
