Meetversterker UN-32
Amroh NV (Radio Bulletin monthly), Muiden
- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1954
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 122849
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification; 4 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org

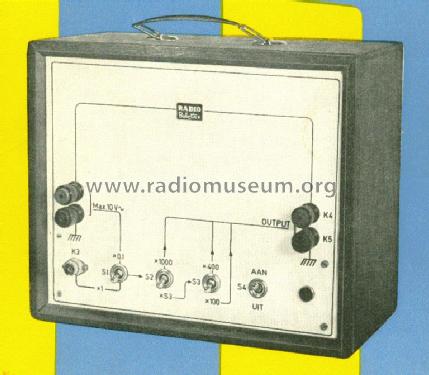

- Model: Meetversterker UN-32 - Amroh NV Radio Bulletin
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 250 x 200 x 110 mm / 9.8 x 7.9 x 4.3 inch
- Notes
- Messverstärker, bestückt mit zwei Doppel-Trioden. Frequenzgang 10 Hz bis 100 kHz. Verstärkung wählbahr: 10 - 40 - 100 - 400 oder 1000 x. Ausgangsspannung max. 80 V. Eingangsspannung min. 0.5 mV.
- Mentioned in
- Zeitschrift: Radio Bulletin, September 1954.
- Author
- Model page created by Aren van Waarde. See "Data change" for further contributors.
