Neutron

Amroh NV (Radio Bulletin monthly), Muiden

Data
Forum
Pictures
Collections

  • Year
  • 1958 ?
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 279780

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector with Amplifer; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4.5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.04 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Neutron - Amroh NV Radio Bulletin
  • Shape
  • Miscellaneous shapes - described under notes.
  • Notes

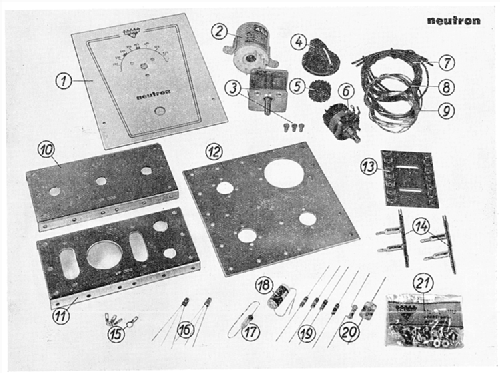

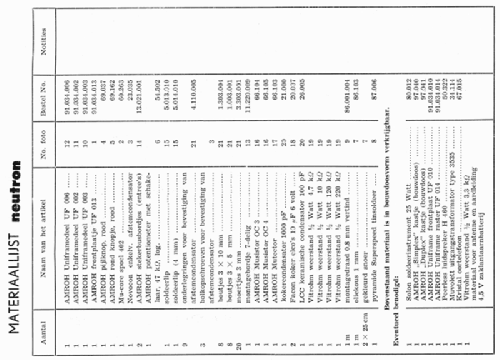

  • The model Neutron could be bought as a kit or by buying all parts separately.

    The wooden housing (type Simplex) was always to be bought separately. In case of using a loudspeaker the Duplex housing could be chosen.

    Data for the model are from Radio Bulletin May 1958 and the booklet for the Neutron from the series "Electronica in Praktijk".

  • Author
  • Model page created by Rob Majoor. See "Data change" for further contributors.
