Arkansas S/N 4225 Ch= 2225 S u. N

Blaupunkt (Ideal), Berlin, später Hildesheim

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Blaupunkt (Ideal), Berlin, später Hildesheim

Year
1955/1956 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
323523

- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

Schematics

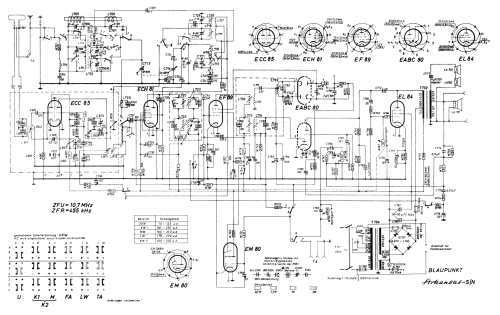

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2561092) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (3)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2561093) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (3)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560764) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

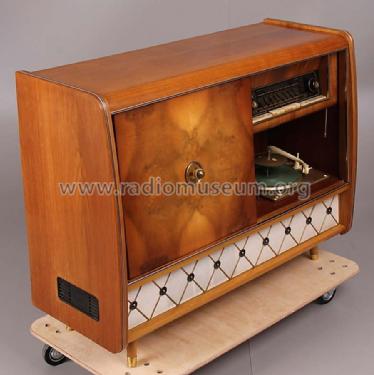

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560763) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560765) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

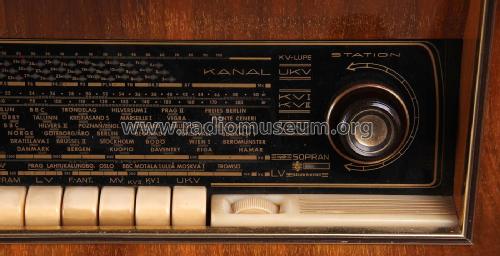

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560766) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560767) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560768) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

Arkansas S/N 4225 Ch= 2225 S u. N; Blaupunkt Ideal, (ID = 2560769) Radio — Blaupunkt Ideal, Arkansas S/N 4225 Ch= 2225 S u. N (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
ECC85 ECH81 EF89 EABC80 EM80 EL84

Number of Transistors

Semiconductors
B250C100

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
6 AM circuit(s) 9 FM circuit(s)

Wave bands
Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

Loudspeaker
3 Loudspeakers

Power out
6 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Arkansas S/N 4225 Ch= 2225 S u. N - Blaupunkt Ideal, Berlin,

Shape
Console with Push Buttons.

Dimensions (WHD)
1180 x 910 x 454 mm / 46.5 x 35.8 x 17.9 inch

Notes
Rundfunk-Chassis = Milano S/N 2225 (Ausführung für Schweden und Norwegen)
Phono-Chassis = Perpetuum-Ebner Rex A

2 KW-Bereiche.

3 Lautsprecher: 1 oval 26 x 18 cm, 2 rund 10 cm.

Net weight (2.2 lb = 1 kg)
44.5 kg / 98 lb 0.3 oz (98.018 lb)
