Boston Stereo 4633 USA

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74635
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 25 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Boston Stereo 4633 USA - Blaupunkt Ideal, Berlin,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1030 x 800 x 390 mm / 40.6 x 31.5 x 15.4 inch
  • Notes

  • Export model - in German catalogs not present; dark wood surface, polished (dunkel hochglanzpoliert).

    Plattenwechsler REX 4 speed

  • Net weight (2.2 lb = 1 kg)
  • 80 lb (80 lb 0 oz) / 36.320 kg
  • External source of data
  • George Shinglock
  • Mentioned in

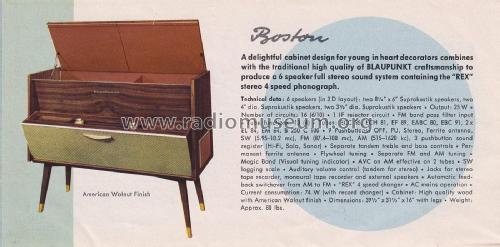

  • -- Original prospect or advert (Blaupunkt Prospekt 7/1959 P.Pickens Import Company New York)

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Blaupunkt Ideal,: Boston Stereo 4633 USA

Threads: 1 | Posts: 1

Greetings to USA/Canada members:
Gratefully request assistance to locate and provide additional data and/or copy of schematic for this export console model to USA (possibly Canada). Present owner does not have technical data for the unit.
Respectfully,
Robert Sarbell

Robert Sarbell † 22.3.22, 18.Nov.04

Weitere Posts (1) zu diesem Thema.
