Micronic C-60 7620400
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1980/1981
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 84320
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

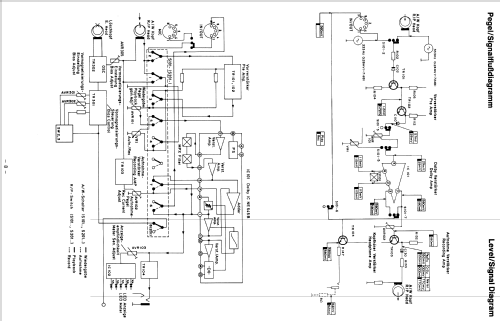

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- 2SC1775 2SC1345 2SC1335 2SD571 2SD669 2SC945 2SA733 2SC945 2SC2002 2SC945 2SC949 2SD669 2SD669 2SC945 SR535D 1S2473 1S34 DN6838 NE645B SN16880 Tr.Gl.=Metal-rectif.
- Main principle
- Audio-Amplification
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Micronic C-60 7620400 - Blaupunkt Ideal, Berlin,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 250 x 115 x 230 mm / 9.8 x 4.5 x 9.1 inch
- Notes
-
Bandsorten-Wahlschalter für Fe2O3/CrO2/Metal Bändern. Dolby B NR-System. Mikrofoneingang an der Frontseite.
Cassettenrecorder-Baustein passend zu Tuner T-60 und Amplifier A-60. Alle Gehäuse in sibergrau. ICs: 4.
- Net weight (2.2 lb = 1 kg)
- 3.8 kg / 8 lb 5.9 oz (8.37 lb)

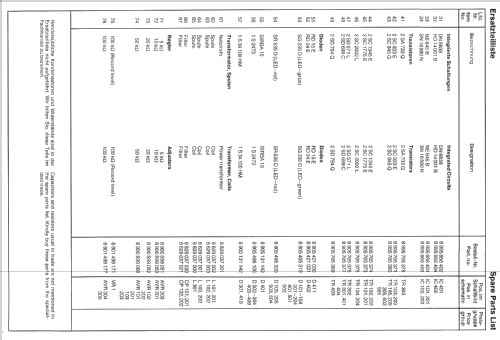

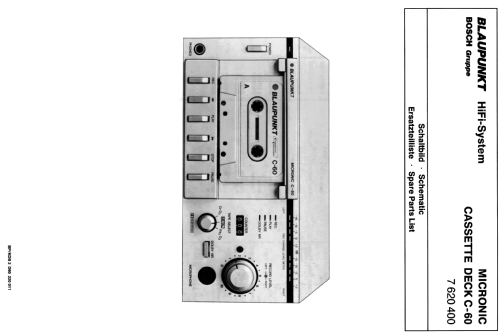

- Literature/Schematics (1)
- -- Original-techn. papers.
