Florida 42 910 Serie T
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129621
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

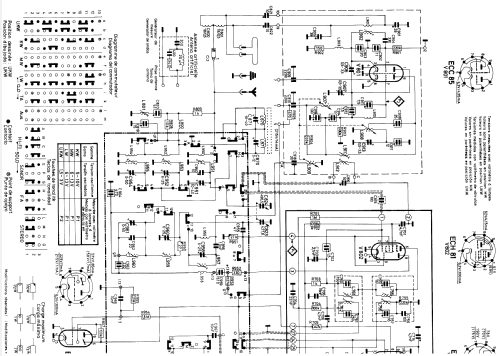

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 155; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Florida 42 910 Serie T - Blaupunkt Ideal, Berlin,
- Shape
- Console: Chairside Radio.
- Notes
- FLorida 42910 Serie T ist eine Stereo Truhe mir PE66 Plattenspieler.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
