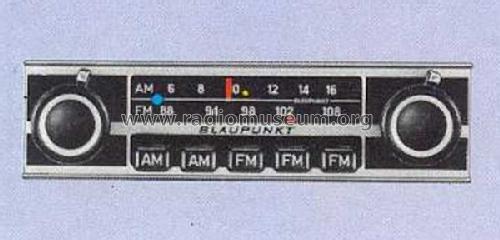

Frankfurt US 7.631.627 ab 0200010
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1971
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 123826
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
aus Blaupunkt Heft 1972
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Frankfurt US 7.631.627 ab 0200010 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 115 x 179 x 43 mm / 4.5 x 7 x 1.7 inch
- Notes
-
Exportmodell. Buchse für Tonbandgerät und Anschluss für Automatik-Antenne, UKW-Bereich bis 108 MHz.
Eisenlose-Gegentaktendstufe, 2stufige Schwundregelung.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
