• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1977

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 191016

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

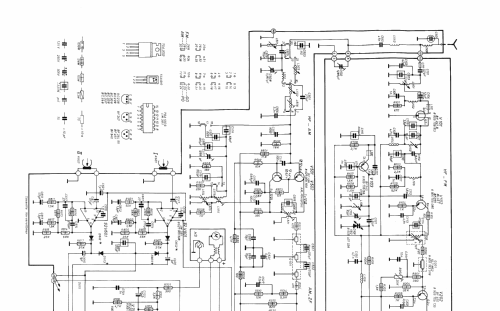

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Le Mans 7637234 ab K7800001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
