Stereo Console Madeira 45364 Serie W

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 330079
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

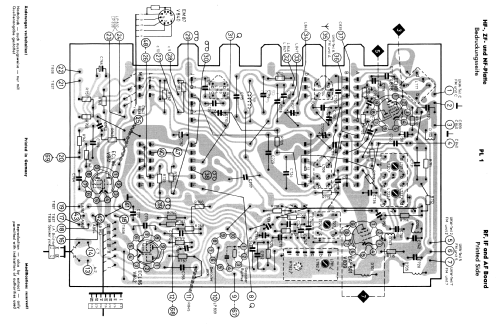

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 225 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Console Madeira 45364 Serie W - Blaupunkt Ideal, Berlin,
  • Shape
  • Console with Push Buttons.
  • Notes

  • Madeira 45364 is a 6-tube export model for the USA with an FM range up to 108 MHz, AM, LW and two SW bands.

    It is equipped with MPX automatic stereo decoder VI containing the additional tubes ECC81, EC92 and seven diodes AA118.

    See also the technically similar models Barcelona 45344 and Rio De Luxe 45354

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
