MT99R Ch= RC61/B
Braun; Frankfurt
- Country
- Germany
- Manufacturer / Brand
- Braun; Frankfurt
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 292140
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

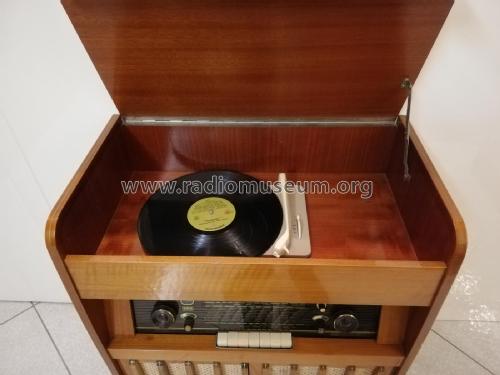

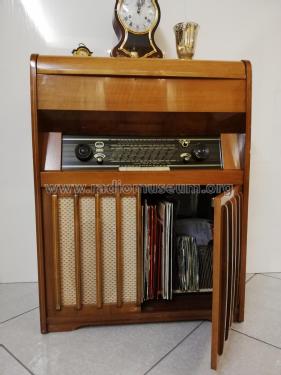

- Model: MT99R Ch= RC61/B - Braun; Frankfurt
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 640 x 835 x 370 mm / 25.2 x 32.9 x 14.6 inch
- Notes
-
Das Grundchassis ist RC61, angepasst für dieses Modell (elfenbeinfarbene Tasten, dunkle Skala etc:) hiess es dann RC61B.
Plattenspieler = Braun Phono-Chassis PC3 3-tourig.
