• Country
• Brazil

• Manufacturer / Brand
• Douglas Radioelétrica S.A.; São Paulo

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 280717

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7G 1N5G 1H5G 1Q5G 25Z6

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / 220 / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 65 circuit 2 - Douglas Radioelétrica S.A.;

• Notes

• The model 65 from Douglas Radiioelétrica has 3 distinct versions known in Brazil

  MODEL	CHARACTERISTIC
  65 circuit 1	6V car battery power supply and 1.5V tubes serie
  65 circuit 2	220Vac - 90Vdc power supply and 1.5V tubes series
  65 circuit 4	90V dc power supply and 1.5V tubes serie

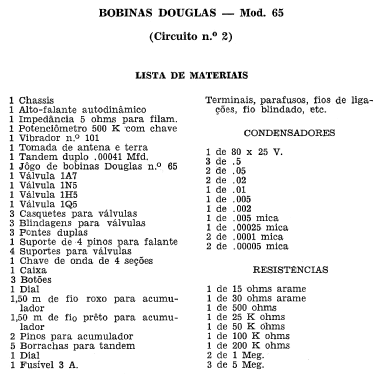

  Supplied in kit format   Rádio receptor fornecido em kit
