• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 100390

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers / Ø 20.4 cm = 8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hi-Fi-Lautsprecher-Box 12 - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 375 x 233 x 220 mm / 14.8 x 9.2 x 8.7 inch

• Notes
• Impedanz 5 Ohm, Belastbarkeit 30 W, Frequenzgang 40-18000 Hz, Mitteltöner 176×126 mm, Hochtöner 69 mm, Varianten: Nußbaum natur mattiert, Teak geölt

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 215.00 DM

• Source of data

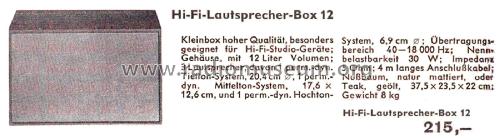

• Handbuch VDRG 1965/1966

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
