• Country
• Italy

• Manufacturer / Brand
• IMER Radio (I.M.E.R.); Luino (VA)

• Year
• 1945 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226046

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

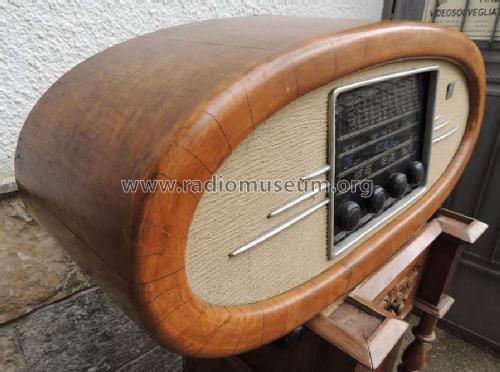

• Model: 548 - IMER Radio I.M.E.R.; Luino VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 800 x 0 x 0 mm / 31.5 x 0 x 0 inch

• Notes

• Onde Medie e 3 gamme di onde Corte.
  Controllo di tono. Ingresso per giradischi.

• Source of data
• Il Manuale del Radiomeccanico

• Author
• Model page created by Ernst Röggla. See "Data change" for further contributors.
