S/W Fernsehempfänger Chassis Ch= 1323 Super-Automatic
Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 275807

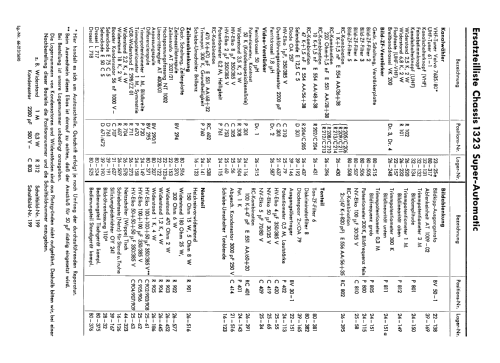

Picture from Imperial manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PC88 PC86 PCC88 PCF80 PCL84 ECH84 PCL85 EF85 EF80 EF80 ECH84 PL36 PY88 DY86 EF80 PCL82 AW59-90
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: S/W Fernsehempfänger Chassis Ch= 1323 Super-Automatic - Imperial Rundfunk und Fernseh
- Notes
-
VHF Tuner Valvo AT 7635/80
UHF Tuner 61-1 or 60-1 or DT 6-1
CRT can be changed according to TV model.
