Airline 62-430 Order= 162 C 430
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48086
-
- Brand: Airline or Air-Line

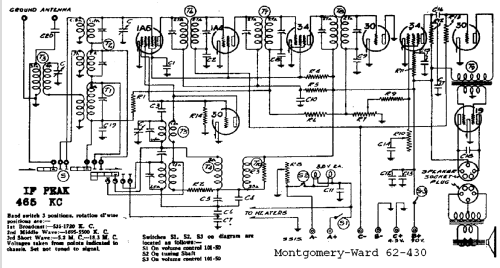

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / -4.5 & 2 & 90 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 62-430 Order= 162 C 430 - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22 x 36 x 11 inch / 559 x 914 x 279 mm
- Notes
-
BC (535-1720 kHz), TROP (1695-5500 kHz) and SW (5.2-18.3 MHz) bands. Push-pull audio amplifier.
Model Airline 62-430 is with Dry "A" Battery. Same Model with Storage "A" Battery: Model Airline 62-428.
- Price in first year of sale
- 48.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Rider's 14-115, 14-116
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (4)

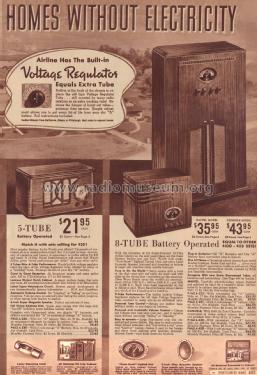

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1936/37, No.125, page 389. Spring/Summer 1937, No.126, page 403.)
