CTV29WHD52

OVP Orava; Trstená

Data
Forum
Pictures
Collections

  • Year
  • 2002 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 334661

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • DSP, Digital Signal Processor
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 160-250 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Power out
  • 10 W (20 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CTV29WHD52 - OVP Orava; Trstená
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 800 x 530 x 480 mm / 31.5 x 20.9 x 18.9 inch
  • Notes

  • Color TV, PAL/SECAM, CRT: 70 cm, Stereo.

    Connectors: EURO-AV, CINCH, JACK, S-VHS

    TELETEX, Remote Control

    PIP and POP function in the screen

    REAL FLAT Screen



  • Net weight (2.2 lb = 1 kg)
  • 38 kg / 83 lb 11.2 oz (83.7 lb)
  • Mentioned in

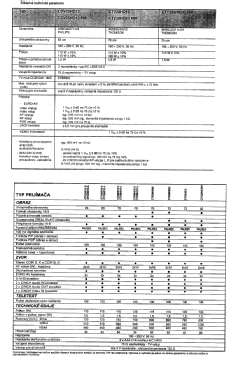

  • -- Original-techn. papers.
  • Author
  • Model page created by a member from SK. See "Data change" for further contributors.
